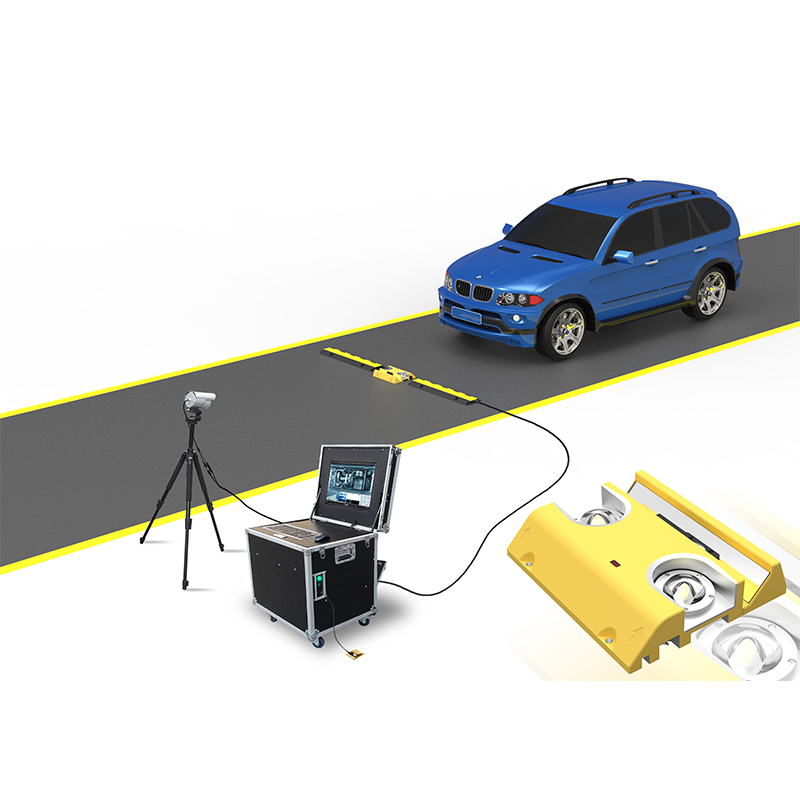

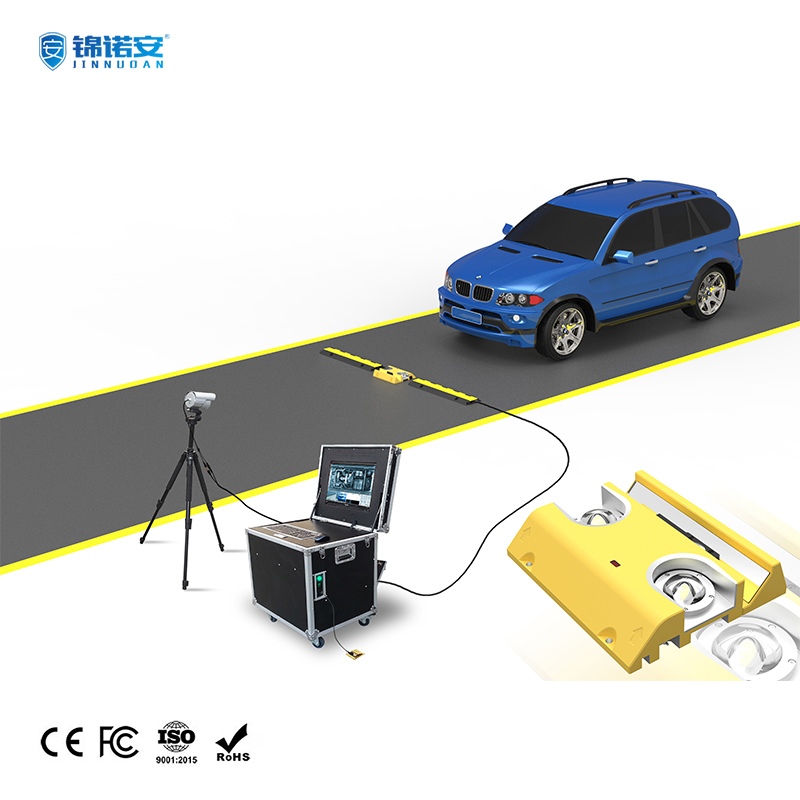

under vehicle inspection system
provides a quick and effective visual search capability for law enforcement officers and for individuals with personal
security concerns. In addiction, specialized task units often require a similar capability optimized for tactical use.
Checking mirror can be carried as an aid to personal security or as an individual issue by operational personnel. Fitted with a convex mirror, telescopic arm and a miniature flashlight.
Product Details
Undercarriage inspection systems
Product descriptions from the supplier
|

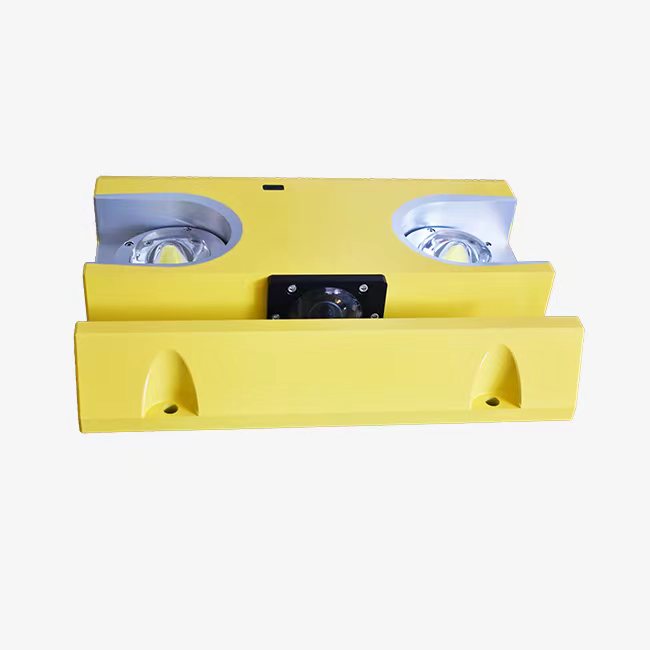

Embedded Screening Part
|
|
|
Camera
|
Sensor: line scans CCD,
|
|
Resolution
|
5000*2048 pixels, Power Supply: 24VDC, 3A
|
|
Illumination
|
LED
|
|
Power Supply
|
24VDC, 120W
|
|
Size
|
1200mm x 350mm x 300mm
|
|
Operating Temperature Range
|
-20 degree to +60 degree
|
|
Input
|
2 channels induction coil
|
|
Output
|
1 Channel switch type 12VDC
|
|
Communication port
|
RS485, Ethernet (Optional)
|
|
Operating Temperature
|
-10℃ to 55℃
|
|

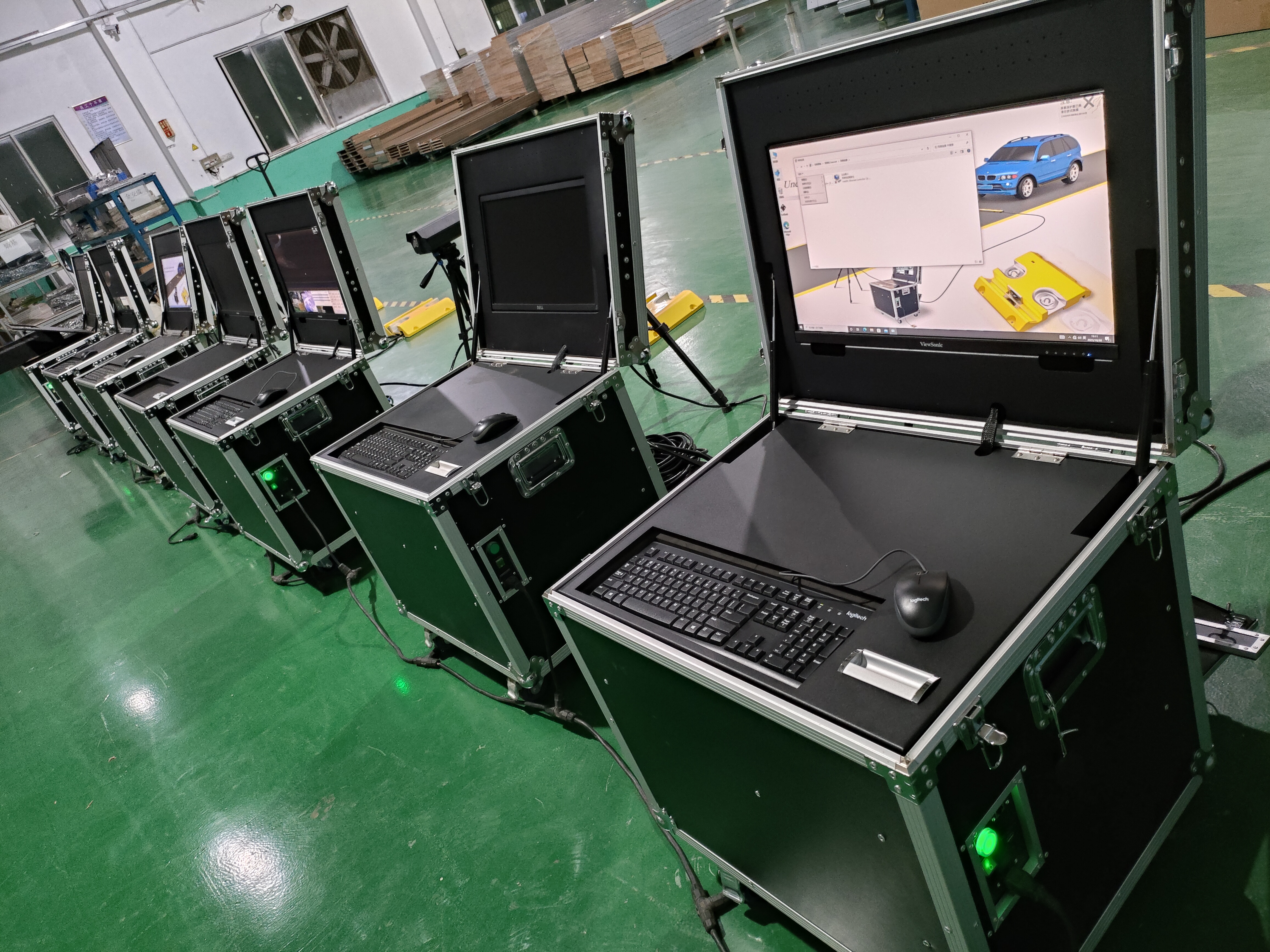

System Host
|
|
|
Brand
|
Grantech (SYM76941VGGA)
|
|
CPU
|
Intel(R)Celeron(R)CPU,E3400,2.6GHz 2.59 GHz
|
|
Memory
|
2G( optional 4G)
|
|
Graphics
|
512M
|
|
Hard Disk
|
SATA2 Hard Disk 500G
|
|
Dual LAN
|
At least one Intel Gigabit
|
|
USB2.0
|
Up to 2 pieces
|
|
Monitor
|
24 inch LCD, resolution up to 1920*1080
|
